Provides power and data connection for up to 24 PoE network devices
Saves time and money by providing data and power using existing network cables
Automatically detects the speed of 10/100/1000 Mbps ports
LCD display for easy access to real-time PoE status monitoring
IEEE 802.3at/af RJ45 PoE/PoE+ compatible on output ports
Up to 30 Watts output power per port*
Total PoE power of 370 watts
Two GBIC module (SFP) slot slots
Supports IEEE 802.3at and IEEE 802.3af compatible devices (wireless access points, VoIP phones, IP cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection
Complies with IEEE 802.3az (Energy Efficient Ethernet EEE) specifications
Power-saving technology allows unused ports to be turned off and power levels to be adjusted according to cable length
All RJ-45 ports support Auto-MDIX (auto uplink)
Store and forward switching architecture
IEEE 802.3x flow control for full duplex mode
Supports up to 8192 MAC addresses
512 kBytes memory buffer
Two high volume cooling fans ensure perfect ventilation
Includes brackets for 19" rack mounting Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
IEEE 802.3af (Power over Ethernet 802.3at Type 1)
IEEE 802.3at (Power over Ethernet 802.3at type 2)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3u (100Base-TX Fast Ethernet) - IEEE 802.3x (Flow control for full duplex mode) General
Support: - 100Base-TX Cat5 UTP / STP RJ45 - 1000Base-T Cat5e UTP / STP RJ45
Packet filter / forwarding rate: - 1,488,000 pps (1000 Mbps) - 148,800 pps (100 Mbps) - 14,880 pps (10 Mbps)
MAC address table: 8192 entries
Buffer memory: 512 kBytes
Backplane speed: 52 Gbps
Switching architecture: store and forward
MTBF: 144,000 hours
Display: - Type: LCD - Resolution: 128 x 64 pixels - Display area: 43 mm x 23 mm (1.69" x 0.9")
Cooling - Cooling fans (2) - Noise level: 21.3 db / A - Airflow: 6.76 CFM
Pinout RJ45 Output Ports (Data + Power) - IEEE Alternate A - Pin 1: Vport [+] - Pin 2: Vport [+] - Pin 3: Vport [-] - Pin 4: Unused - Pin 5: Unused - Pin 6: Vport [-] - Pin 7: Unused - Pin 8: Unused
Certifications: FCC Class A, CE, RoHS LED
Input: 100 - 240 V AC, 50 - 60 Hz
Power consumption: 420 watts (maximum) Environmental
Metal housing
Dimensions: 204.3 (D) x 441.1 (W) x 44 (H) [mm].
Weight: 4.1 kg .
Operating temperature: 0 - 45°C
Operating humidity: 10 - 90% RH, non-condensing
Storage temperature: -10 - 70 ° C Package Contents

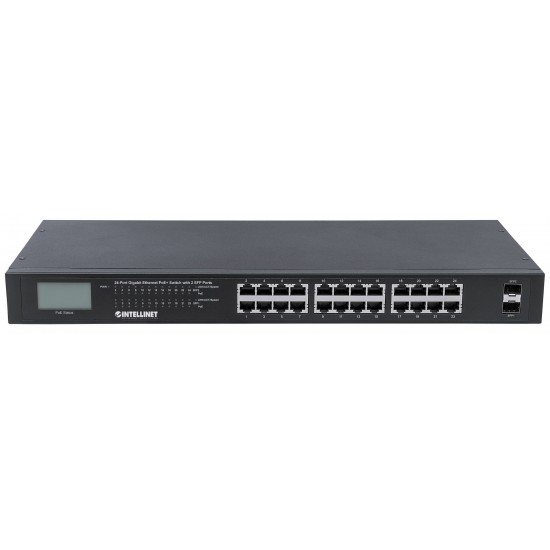

PoE + 24-port Gigabit Ethernet switch with 2 SFP ports
Power cable
User Manual
19" mounting brackets
